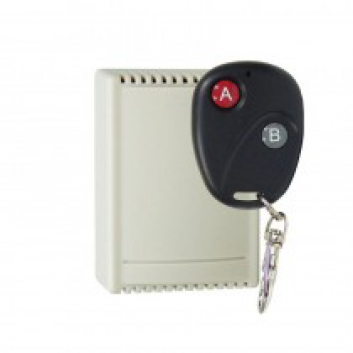

HX-2CH wireless remote switch .

Napon: DC6V /12v Radna frekvencija: 315MHz – 433MHz Osetljivost: -95Db m Dimenzije: 74mm x 54mm x 28mm 2 kanala Specification: 1.Working Voltage: DC6V /12v 2.Quiescent Current : 3-5MA 3.Rated power : 60W 4. Receiving frequency: 315-433.92MHz 5.Receiving sensitivity : -95Db m 6.Encode way: Learning 7.Size :74*54*28mm How to learn. 1.Press the button on the main board, led flashes, and then press remote control forward button until the flash is off, That means the forward function successful.The reverse button and the stop button is as same way.Important notice:It must be learning by: Forward-stop-reverse, Pls 2.If you want to add extra remotes, pls according to the above operating ways. It can match at most 20 pcs remote controls. 3.Remove the remote control, pls press the learning key more than 3 seconds until the main board led is off, that is successfully deleted. 4.This switch can learn blow IC chipset wireless remote controls:PT2262, PT2260, PT2240, EV1527 5. Important notice:The learning way must be: forward-stop-reverse or reverse-stop-forward Pls don’t direct from : forward-reverse or reverse-forward
